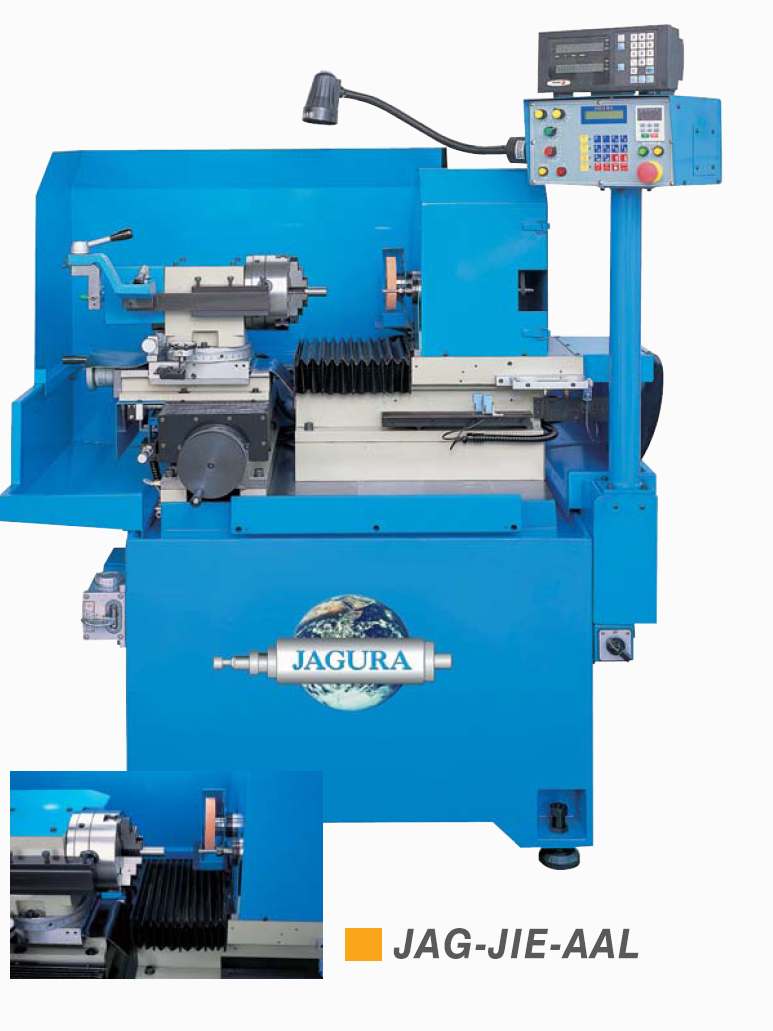

Precision inner&external grinder JIE-AL
Clamping diameters 2.5- 150mm
max. travel front to back 300mm
left to right 300mm
Cross feeding graduation 0.0025 mm
Table speed 0-4m/min
Roller speed 0-550 rpm
Swivel angle ±5°
Feeding method front to back manual
left to right automatic
Spindle speed I D:0-55000 rpm
OD:0-12000 rpm
Main Motor
Roller 120W
Spindle 1HP X2
front to back -
left to right 25W
Dimensions (LXWXH) 1000x800x1480mm
Weight 630 Kgs
Working range (inner hole) ID 1.5- 50 mm
OD 0.5- 50 mm
20" konténer
