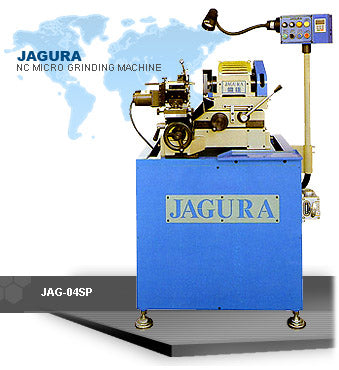

Model JAG-04
Clamping 1.5-40mm
diameters
max. front to back 40mm
travel left to 70mm
right
Roller speed 180 rpm
Swivel angle ±5°
Spindle speed 7500 rpm
Main Motor 3/4HP ,3
Dimensions 900x700x1400mm
(LXWXH)
Weight 180 Kgs
Working range 0.3-32mm
(inner hole)
Standard Accessories
1.Grinding Wheel
(Ø100 x Ø25.4x20t ) x1pc
2.Grinding Wheel Flange x1pc
3.Flange Washers x 1pc
4.Flange Extractorx x 1pc
5.Tool Box and Accessories x 1set
6.Radius and Accessories x 1set
