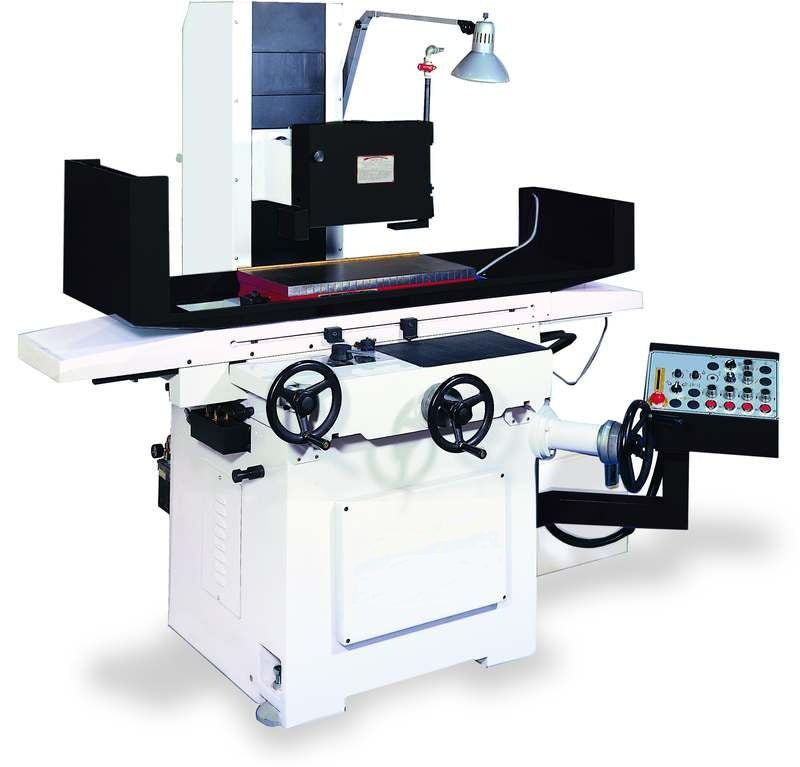

Síkköszörű gép 300x600 mm
MODEL: PFG-DL3060AH (CE norm)
Auto cross feed, Longitudinal by Sensor & solenoid valve, Continuous
Lubrication, Automatic crossing stroke adjustment, Back water splash shield
Table surface: 300x600mm
Spindle motor: 5HP
Hydraulic motor: 1HP
Cross motor: 1/5HP
Table loading: 250kgs
Max distance from center of spindle to table: 500mm
Max. distance center of spindle to table mm 500 (20")
[Option:600 (24")]
Table guideway V & FLAT WAY
Wheel dimension mm 355x38x127
Machine net weight Kgs 1700
Packing gross weight Kgs 1950
Floor space (AxBxC) mm 2630x1550x1800
Standard accessories:
1. Grinding wheel
2. Wheel flange
3. Flange extractor
4. Wheel balancing arbor
5. Wheel balancing base
6. Wheel dresser with diamond
7. Leveling screw and plates
8. Tool box and tools
9. Working lamp
10. Manual
